Intelligent Money Counter

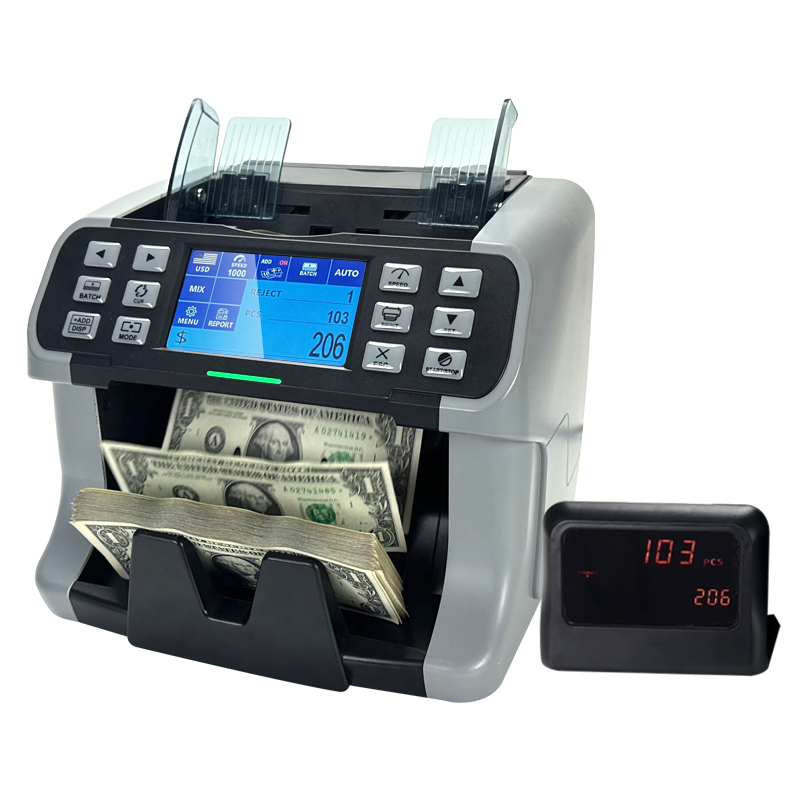

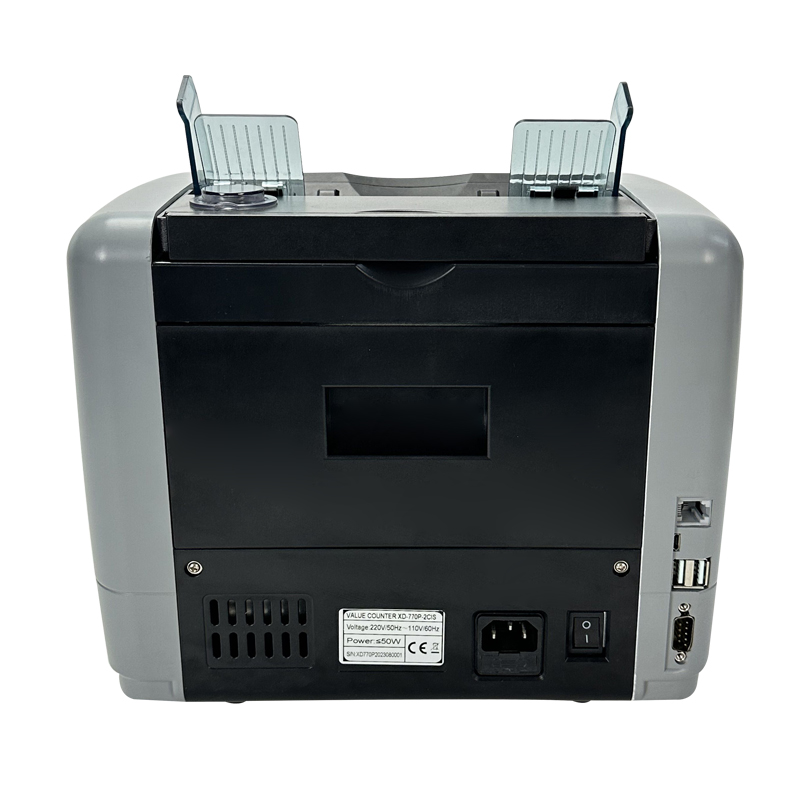

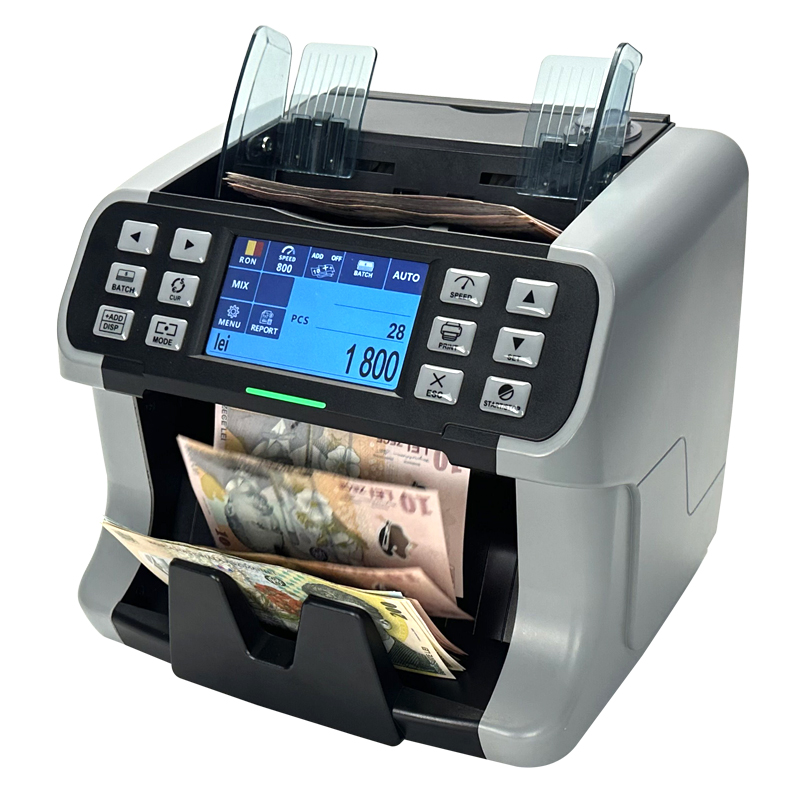

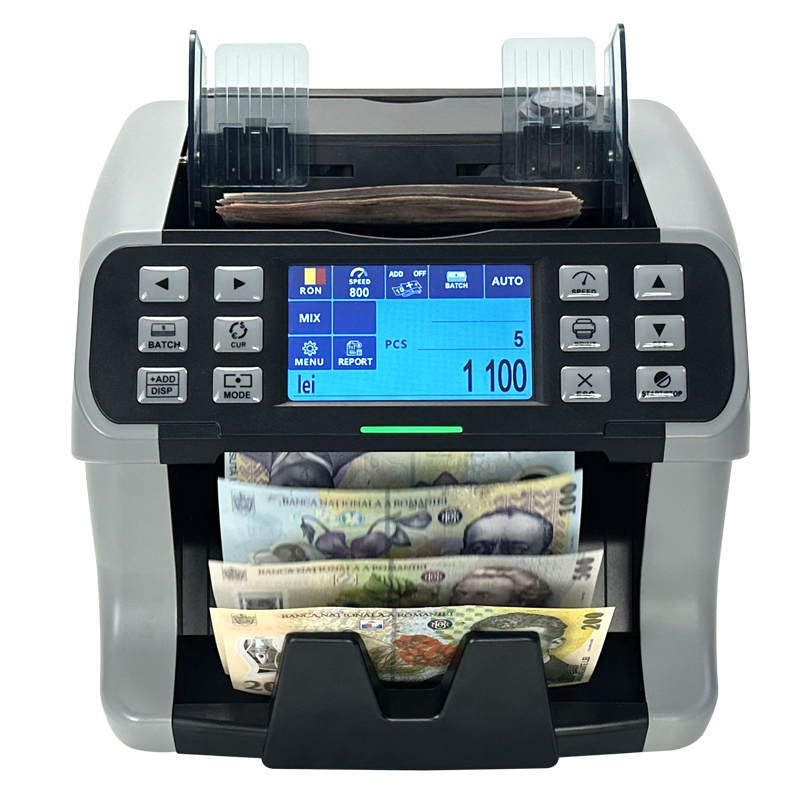

XD-770P Intelligence Money Counter

TFT TOUCH PANEL SCREEN
Serial number reading
With built in battery
Value counting
Product description: Hot Sales Touch Panel Screen Mixed Total Value Amount Counter Fake Notes Discriminator Bill Notes Counter Latest Money Counter
INQUIRY

Features：

1.ECB successfully tested

2.Mix value counting of multi currency

3.Easy updates via SD card
4.Error Detection: Double Detection, Half Note Detection, Chain Note Detection
5.Denomination Detection: Contact Image Sensor
6.Serial numbers reading
7.Printer and PC connection
8.Available currencies select: USD, EUR, GBP, CAD, MXN... Up to 40 currencies
9.Counterfeit Detection: CIS Image, Magnetic, Infrared, Ultraviolet
10.Options: Customer Display / Thermal Printer / PC connection
11.Interface: RS-232, USB,LAN

12.3.5 Inch Touch Panel TFT Display

Description:

Model	XD-770P
Feeding System	Roller friction system
Display	4.3 Inch color TFT TOUCH PANEL
Counting Speed	800/1000 pcs/min(MDC/SDC Mode) 800/1000/1200 pcs/min(CNT Mode)
Counterfeit Detection	CIS, Magnetic, Infrared, Ultraviolet
Counting Mode	MIX/SORT/COUNT
Error Detection	Double Detection, Half Note Detection, Chain Note Detection
Available Currencies	USD, EUR, GBP, CAD, MXN... Up to 50 currencies
Denomination Detection	Contact Image Sensor
N.W.	5.85kg
G.W.	7kg/14.52kg
Machine Dimensions	283(W)×273(D)×236(H)mm
Package Size	680×380×330mm(2 pcs)
Power Supply	AC 100~240V ±10%50/60 Hz
Size of Countable notes	Maximum 185x90 mm/Minimum 110x60 mm
Thickness	0.08-0.12mm
Hopper Capacity	400-500 notes
Stacker Capacity	200 notes
Power Consumption	50W
Ambient Temperature	0℃-35℃(operating)
Working Environment	-10℃-60℃(stocking)
Ambient Humidity	20%-90%(no condensation)
Options	Remote Display / Thermal Printer/PC connection
Interface	RS-232, USB, LAN
Product List	Main unit,Manual, Cleaning Brush, Power line, External display(optional).
