1.Mix value counting
2.Easy updates via USB flash driver
3.Error Detection: Double Detection, Half Note Detection, Chain Note Detection
4.Denomination Detection:IR Image Sensor 5.Printer connection (optional)
6.Available currencies: USD,EUR,CNY,EGP,SYP,COP,PKR,IQD,TRY,IQD or Customization
7.Counterfeit Detection: CIS/MT/MG /UV/DD
8.Options: Remote Display / Thermal Printer
9.Interface: RS45 port(LAN), USB, RS232 port
10.Counting Mode: MDC(Mixed denomination counting)/SDC(Single denomination counting)/CNT(Counting without detection), Add(Accumulative counting),Batch( Preset counting)
Description:
|
Model
|
XD-770R
|
||
|
Feeding System
|
Roller friction system
|
||
|
Display
|
3.5 Inch color TFT
|
||
|
Counting Speed
|
800/1000/1200 pcs/min(CNT Mode)
|
||
|
Counterfeit Detection
|
CIS, Magnetic, Infrared, Ultraviolet
|
||
|
Error Detection
|
Double Detection, Half Note Detection, Chain Note Detection
|
||
|
Available Currencies
|
USD/EUR/CNY/IQD/TRY/SYP/MYR/COP/PKR (support customization)
|
||
|
Denomination Detection
|
CIS Image Sensor
|
||
|
N.W.
|
5.15kg
|
||
|
G.W.
|
7.05kg/14.1kg
|
||
|
Machine Dimensions
|
260(W)×230(D)×240(H)mm
|
||
|
Package Size
|
675×380×340mm(2 pcs)
|
||
|
Power Supply
|
AC 100~240V ±10%50/60 Hz
|
||
|
Size of Countable notes
|
Maximum 185x90 mm/Minimum 110x60 mm
|
||
|
Thickness
|
0.08-0.12mm
|
||
|
Hopper Capacity
|
400-500 notes
|
||
|
Stacker Capacity
|
200 notes
|
||
|
Power Consumption
|
50W
|
||
|
Ambient Temperature
|
0℃-35℃(operating)
|
||
|
Working Environment
|
-10℃-60℃(stocking)
|
||
|
Ambient Humidity
|
20%-90%(no condensation)
|
||
|
Options
|
Remote Display / Thermal Printer
|
||
|
Interface
|
RS-232, USB, LAN
|
||
|

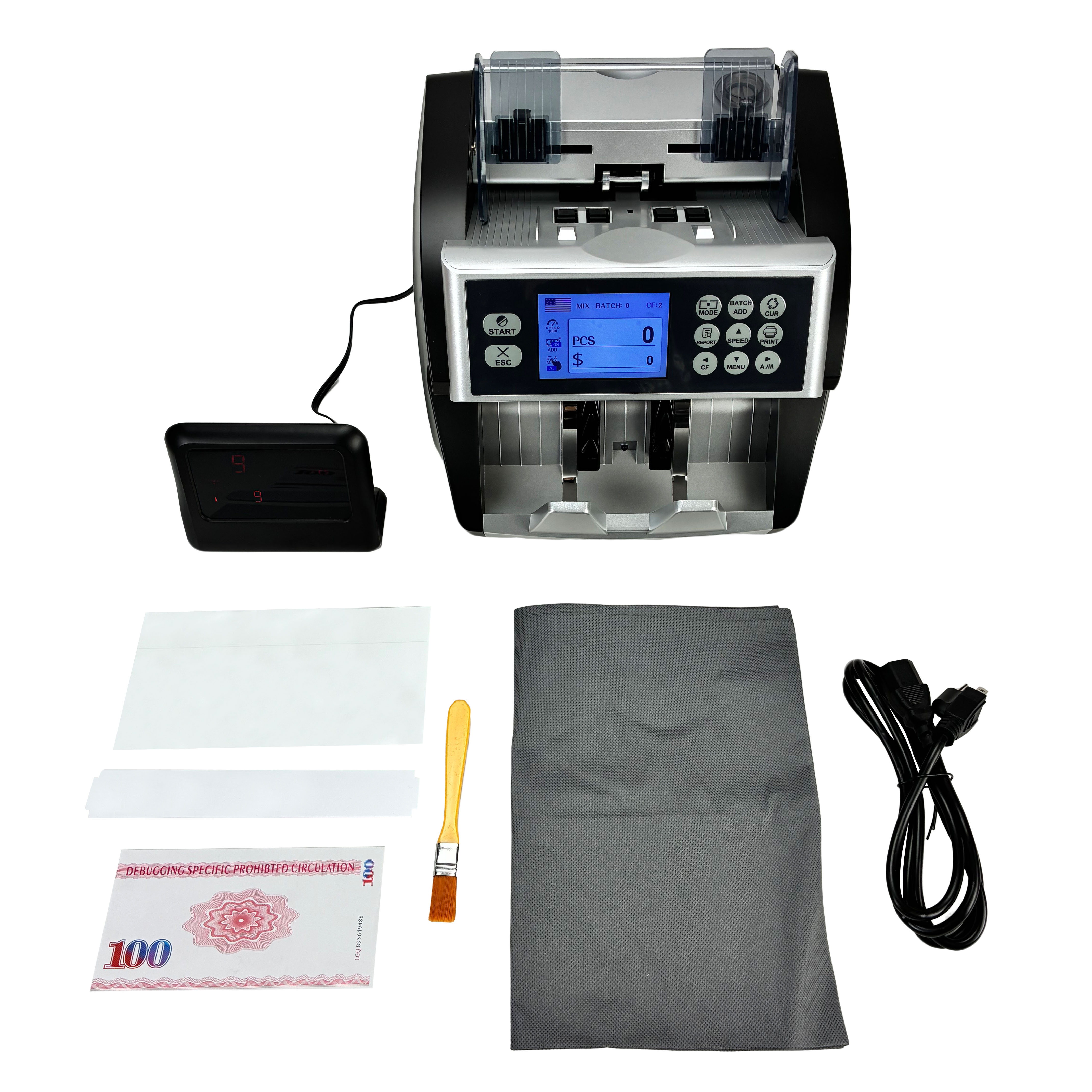

Product List
|
Main unit,Manual, Power adapter, External display(optional).
|
||
